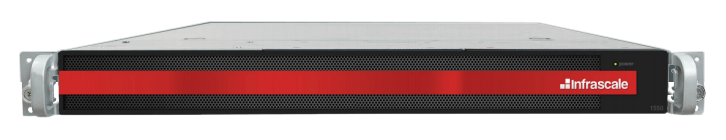

INFRASCALE CLOUD FAILOVER APPLIANCE (CFA) - 4550
Fully integrated backup, disaster recovery, and archiving for files and servers.
As the hub of the Infrascale Disaster Recovery solution, CFAs enable push-button failover for servers and VMs – locally or in the cloud – eliminating downtime and data loss when disaster strikes.
KEY FEATURES AND BENEFITS
Local Disaster Recovery
- Spin up systems directly on the CFA
- Recovered VMs boot-ready, with VNC or RDP access, in minutes
- Powered-off machines can be backed up and recovered to production environments
Failover to the Cloud
- For recovery, choose any version of a machine’s backup to be booted and run directly in the cloud
- VNC or RDP access to help businesses minimize down time
Full & Granular Recovery
- Utilizes universal VSS writer support
- Capable of backing up databases like SQL, SAP, and Exchange
- Supports mailbox level recovery of Exchange Server databases
- Supports file-level recovery
Boot Ready In Minutes
- Industry-leading boot-ready time for failover
- Average recovery time: 2 min
VMware Agentless Backup
- Supports an agentless approach to backing up and recovering VMware environments
DR Playbook Orchestration
- Specify recovery order, group, and set intervals for VM spin up
VMware, Hyper-V, and Physical Machines
- Backup physical machines and recover them to existing hypervisors, or recover VMs as physical machines
- Set policies to auto-protect newly created VMs to save time, money, and reduce risk of down time due to human error
Secure Replication
- CFA replicates backups to the Infrascale cloud or to secondary appliances using byte-level replication for maximum efficiency.
- Replication is secured with AES-256 encryption to protect data against unauthorized access during transfer
Central Deployment and Management
- For environments with greater security needs, backup settings & schedules (+ recovery) can be accessed over the WAN from central management console or may be limited to LAN or VPN access
Supported Backup Targets
vSphere ESXi
5-6.7
Windows
2008R2 and up
Windows Servers
2008R2 and up
Exchange Server
2003 and up
SQL Server
2005 and up
Linux Server
Physical CFA Hardware Specifications
| Model | 965 | 1265 | 1550 | 2750 | 4550 |
|---|---|---|---|---|---|
| ARCHITECTURE | |||||
| CPU | Intel Core i5 2.8 GHz, 6 cores | Intel Core i5 2.8 GHz, 6 cores | Intel Xeon E5-1620 v4 3.5 Ghz, 4 cores | Intel Xeon E5-1650 v4 3.6 Ghz, 6 cores | Intel Xeon E5-1660 v4 3.2 Ghz, 8 cores |
| CPU Upgrade | N/A | N/A | Up to 18 cores @ 2.1GHz | Up to 18 cores @ 2.1GHz | Up to 18 cores @ 2.1GHz |
| RAM | 32 GB 2666 MHz, DDR4 | 32 GB 2666 MHz, DDR4 | 64 GB 2133 MHz ECC DDR4 | 128 GB 2133 MHz ECC DDR4 | 256 GB 2133 MHz ECC DDR4 |
| RAM Upgrade | N/A | N/A | Up to 256 GB | Up to 256 GB | N/A |
| SSD | 256 GB | 256 GB | 240 GB | 480 GB | 960 GB |
| HDD | 6 TB @ 7200 rpm | 6 TB @ 7200 rpm | 4 TB / 6 TB @ 7200 rpm | 4 TB / 6 TB @ 7200 rpm | 4 TB / 6 TB @ 7200 rpm |
| Hot-swappable HDD Bays | 2 HDDs | 2 HDDs | 4 HDDs | 12 HDDs | 24 HDDs |
| RAID level | RAID-1 | RAID-1 | RAID-5 | RAID-6 | RAID-6 |
| Ethernet | 2 × 1 GbE, IPMI | 2 × 1 GbE, IPMI | 2 × 10 GbE, IPMI | 2 × 10 GbE, IPMI | 2 × 10 GbE, IPMI |
| PHYSICAL SPECS | |||||
| Form factor | Desktop NAS | 1U | 1U | 2U | 4U |
| Width x Depth x Height (in) | 10 x 5.5 x 7.1 | 16.8 × 22.6 × 1.7 | 17.2 x 19.85 x 1.7 | 17.2 x 25.5 x 3.5 | 17.2 x 26 x 7 |
| Weight (lb) | 7 | 27 | 42 (without HDDs) | 56 (without HDDs) | 79 (without HDDs) |
| POWER | |||||
| Power supply unit | 1 x 250 W | 1 × 350 W | 1 × 350 W | 1 × 480 W | 2 x 600 W (1000 W @ 100-140 V, 50-60 Hz; 1280 W @180-240 V, 50-60 Hz) |
| Voltage | 100-240 V, 50-60 Hz | 100-240 V, 50-60 Hz | 100-240 V, 50-60 Hz | 100-240 V, 50-60 Hz | 100-240 V, 50-60 Hz |
Virtual CFA Specifications
| Delivery Options | A downloadable VM will be provided in a preferred format in the following options: OVA, EVB, OVF Licensing flows do not change for physical versus virtual appliances |
| Hardware Specs | We recommend the same requirements as listed above for Infrascale physical appliances. |
| Hypervisor Support | All options require hardware virtualization support VMware vSphere ESXi 5.0 - 6.7 Hyper-V 2008 R2 - 2016 (* Only 2016 supports local boot) |
Documentation:
Download the Infrascale-Cloud-Failover-Appliance Datasheet (PDF).
